Product Details
- Place of Origin: 1
- Brand Name: zijingang rubber bult
- Model Number: 842*20*30
type | top | belt thickness | angle |
| HM | 10.5 | 8.0 | 38 |
| AX | 13 | 8.0 | 38 |
| BX | 17 | 11 | 38 |
| CX | 22 | 14 | 38 |
| DX | 32 | 19 | 38 |
| EX | 38 | 23 | 38 |
Section size of raw edge narrow v belt
type | top | belt thickness |
| XPZ | 9.7 | 8.0 |
| XPA | 12.7 | 10 |
| XPB | 16.3 | 13 |
| XPC | 22 | 18 |
| 9NX | 9.5 | 8 |
| 15NX | 16 | 13.5 |
| 25NX | 25.4 | 23 |
Section size of raw edge v belt for automobile
| type | top width | wrapped v belt | raw edge v belt | ref | rec |
| AV-10/9.5 | 10.0 | 8.0 | 7.5 | 7.5 | 8.0 |
| AV-13/12.5 | 13.0 | 10.0 | 8.5 | 8.5 | 9.0 |
| AV-15 | 15.0 | 9.0 | / | / | / |
| AV-17 | 16.5 | 10.5 | 9.5 | 9.5 | 11.0 |
| AV-22 | 22.0 | 14.0 | / | / | 13.0 |

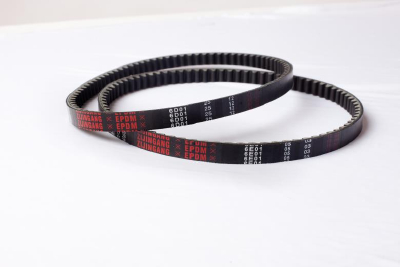

The top and the bottom are encased by the wrapper.Both sides are rubber. V belt of tooth shape groove is designed for the bottom to improve the flexural property.
